Product Description:

High effect filter: This smoke extractor continuously pulls in your dtf powder shaker's fumes and oil, running them progressively through its filter element and inner activated carbon filters to absorb all harmful gases and unpleasant odors.

• Highly mobile: The 4 quality caster wheels move this small but dependable smoke purifier easily between your devices when needed and then lock smartly in place once you're ready to go.

• Independent design, open it you can use it.

• Adopts the full-scale design, inner oil gas, smoke room are large, have good filter effect.

• Can satisfy dtf powder shaker or sublimation color system's filter requirement.

Technical Parameters:

Package contents:

1 * Fume Extractor

1 * Smoking Pipe

1 * Smoking Cover

1 * Primary Filter Cotton

1 * HEPA Filter

1 * Activated Carbon Filter

1* Power Cord

1 * Manual

FES350 Fume Extractor — Frequently Asked Questions (FAQ)

Section 1: Applications & Filtration Efficiency
Q1: What are the primary application scenarios for the FES350 Fume Extractor?
A: The FES350 is engineered for light-to-medium fume, dust, and odor extraction across various industrial, medical, and laboratory environments:
Electronics Soldering: Captures hazardous rosin smoke and fumes generated during hand soldering, soldering pots, and wave soldering.
Laser Processing: Filters smoke and particulate dust from low-to-medium power laser marking, engraving, and cutting (e.g., acrylic, wood, leather, paper).
Beauty & Physical Therapy: Extracts smoke and organic odors produced during Moxibustion therapy, laser skin resurfacing, and freckle removal procedures.
Laboratory & Chemical Testing: Localized extraction of trace volatile organic compounds (VOCs) and airborne particulate matter.

Q2: How efficient is the FES350 at removing particulate dust and odors?
A: The FES350 utilizes a 4 stage progressive filtration system. It achieves a 99.97% purification rate for airborne particles as small as 0.3 microns (via high-efficiency particulate filters). The high-capacity activated carbon stage effectively adsorbs toxic volatile gases (such as formaldehyde, benzene, sulfur dioxide) and noxious odors, allowing purified air to be safely recirculated indoors.

Section 2: Installation & Operation
Q3: Does the FES350 require complex assembly upon delivery?
A: No. The FES350 is a plug-and-play standalone unit:
Unpack the unit and attach the flexible extraction arm/duct and hood.
Position the extraction hood directly above the fume source (optimal distance: 5–15 cm).
Connect to a standard power supply (220V/110V) and turn on the power switch.

Q4: What is the operating noise level of the unit?
A: Equipped with a brushless DC motor and built-in acoustic attenuation system, the FES350 operates at a noise level between 60 dB under standard operating airflow.

Q5: Is the airflow rate adjustable?
A: Yes. The unit features a digital control panel, allowing operators to seamlessly adjust suction power based on the volume of fume generated—optimizing both purification efficiency and energy consumption.

Section 3: Filter Maintenance & Replacement

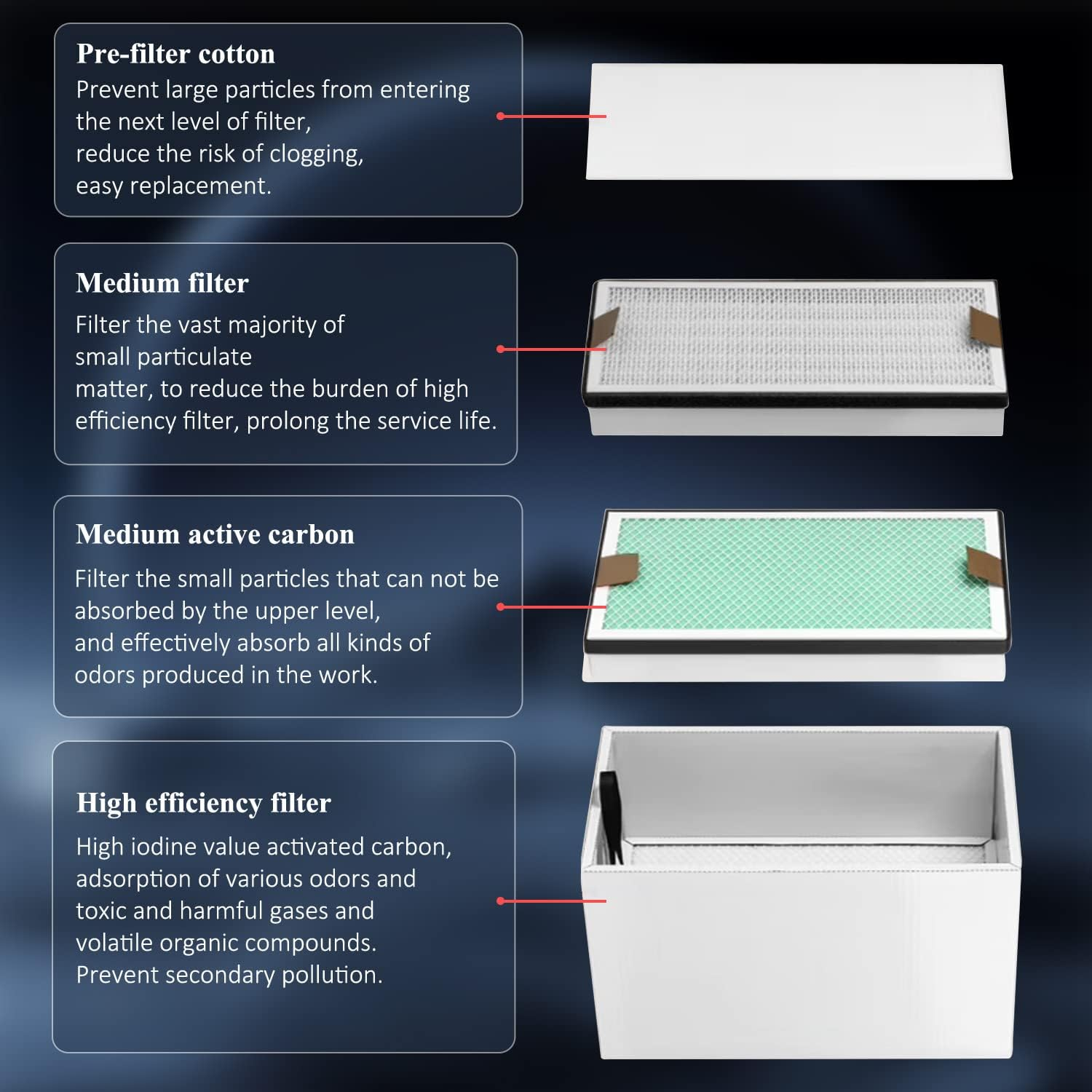

Q6: What filter stages are built into the FES350, and what are their functions?
A: The FES350 incorporates a 4-stage filtration system:
Pre-Filter : Traps large particulate dust and debris to protect and extend the lifespan of downstream filters.
HEPA Filter: High-efficiency particulate air filter capturing micro-particles and fine smoke down to 0.3 μm.
Activated Carbon Filter: Adsorbs chemical vapor, volatile organic compounds (VOCs), and pungent odors.
Main filter with Activated carbon:Nano composite carbon with molecular sieve can absorber toxic and harmful gases.97% odor cleaning rate.

Q7: What is the average lifespan of each filter element?
A: Filter longevity depends on usage frequency and contaminant concentration. Recommended replacement intervals:
Pre-Filter: 1 – 4 weeks (inspect regularly; replace when visibly dark or clogged).
HEPA Filter: 3 – 6 months.
Activated Carbon Filter: 6 – 9 months.
Main filter： 6 – 12 months.

Q8: How can I tell when it is time to replace a filter?
A: Filter inspection or replacement is recommended under any of the following conditions:
Noticeable drop in suction power: Indicates dust loading and resistance in the Pre-Filter or HEPA filter.
Odors at the air outlet: Indicates adsorption saturation in the activated carbon stage.
Buzzer Alarm: (On models equipped with airflow obstruction alarms) The unit emits an audible signal when internal static pressure exceeds normal operating limits.

Section 4: Troubleshooting
Q9: What should I do if the unit fails to turn on?
A:Verify that the power cable is securely plugged into a functioning electrical outlet.
Inspect the fuse located near the power inlet and replace it with a spare if blown.
Ensure the cabinet door latches are securely closed (safety micro-switches may cut power if latches are disengaged).

Q10: What should I check if suction power suddenly decreases?
A:Inspect the flexible extraction duct for sharp bends, cracks, or internal blockages.
Ensure the extraction hood is positioned close enough to the fume source (<10 cm recommended).
Open the top hatch and inspect the Pre-Filter pad; replace it immediately if heavy dust buildup is present.

Q11: What is your warranty policy and how are spare parts handled?
A: We offer a 1-Year Warranty on the main unit and motor (excluding consumable filters). In case of any technical defect, we provide free replacement components and 24/7 online video/technical support for your engineering or service team.

Q12: Do you support OEM/ODM branding for overseas distributors?
A: Yes! As a direct source manufacturer, we offer comprehensive OEM/ODM services, including: Silk-screen logo printing on the machine body and hood. Customized outer housing color schemes. Custom branded box/packaging design. Regional power cords and plugs (US, EU, UK, AU, JP standards).

Q13: Does the FES350 have international safety certifications for customs clearance?

A: Yes. The machine is fully certified with CE, RoHS, and FCC. Additionally, we provide complete MSDS reports for the activated carbon filter, ensuring smooth international shipping and customs clearance worldwide.
