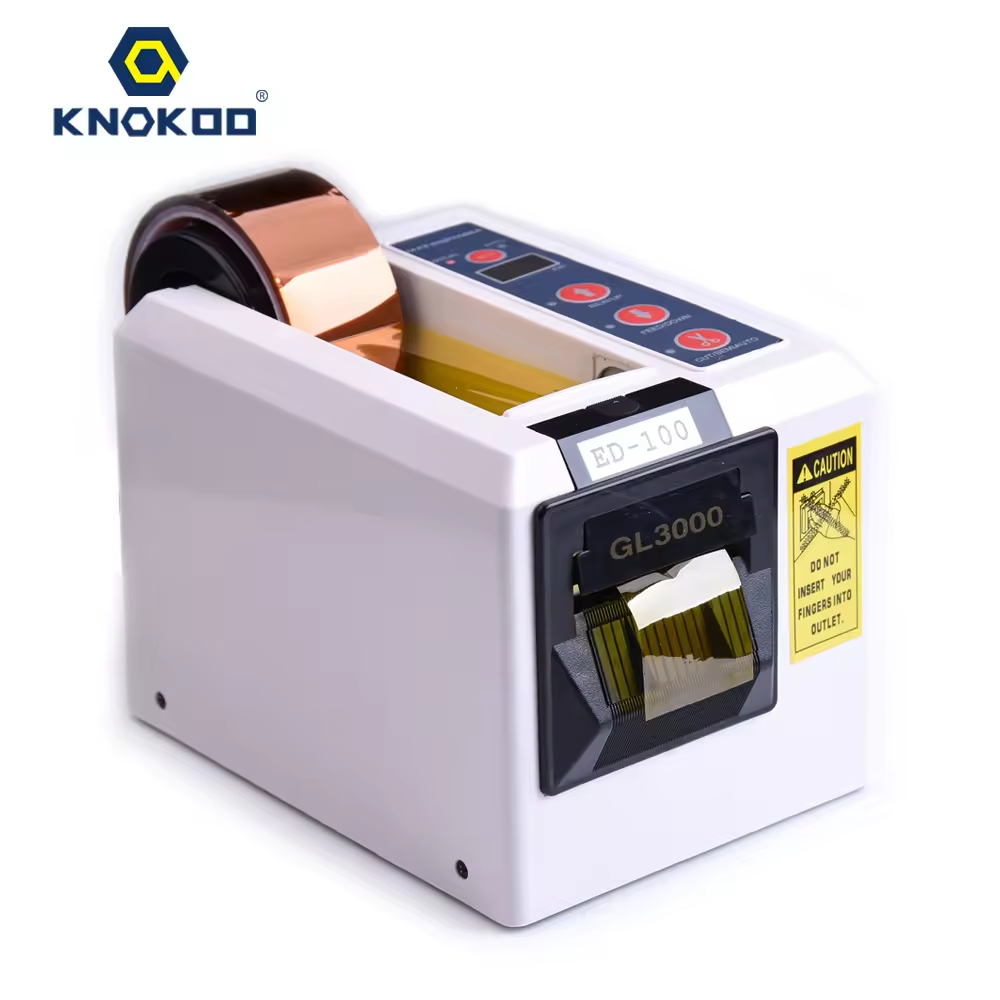

Product Description

1) After connecting the power switch to the socket, turn ON the "ON" position.

2) Lift the tape hanger up, rotate the tape, and use the tape guide to fix the tape.

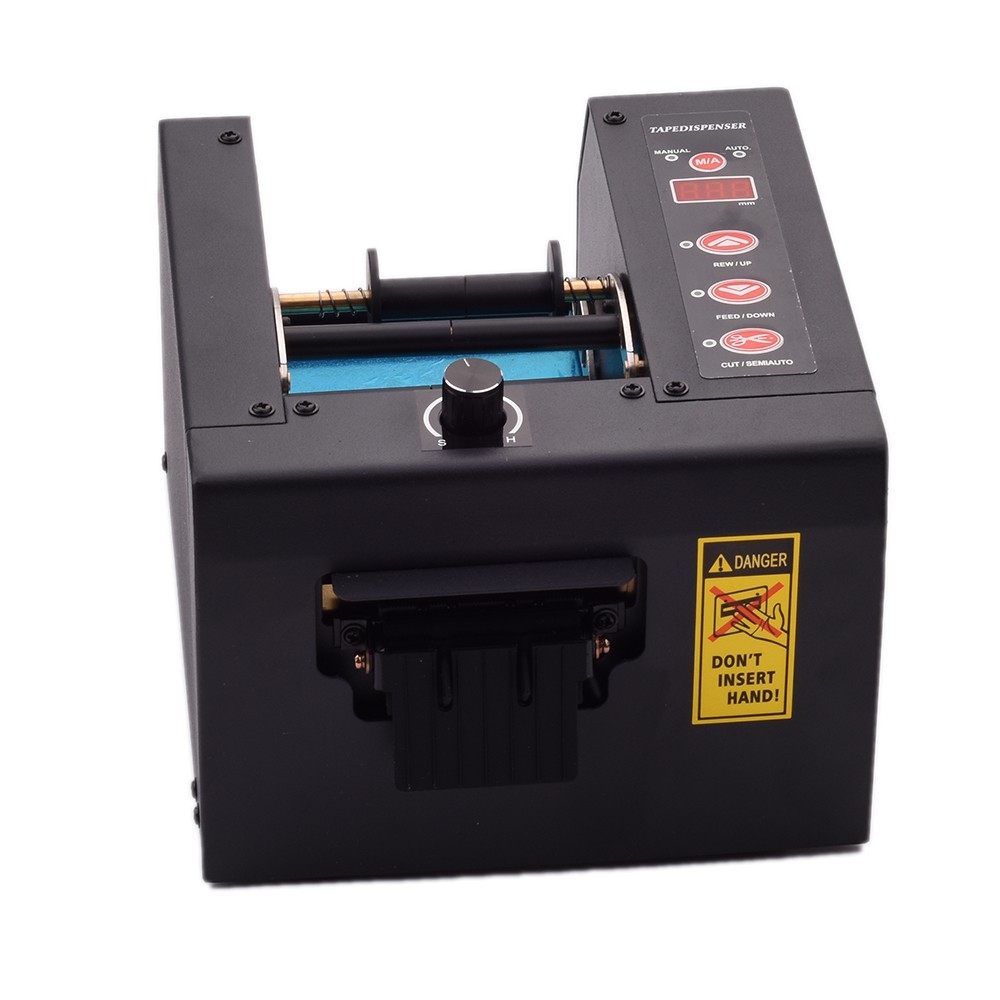

3) After hearing the bell (9) light will shine, (1) menu mode light will light up.

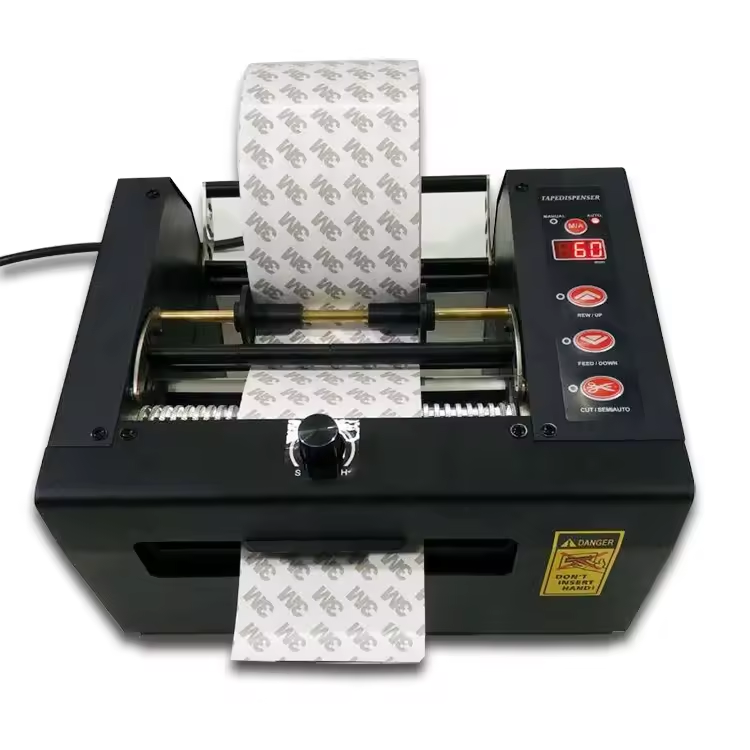

4) Paste the end of the tape on the central part of the delivery roller. Gently press the upper part of the adhesive tape with your hand, and then press the button (6) (Supply), the light (9) will light up, and the tape will be sent to the outlet. Tape delivery After going outside (10) the light will light up.

5) When the (10) light shines, press the (7) (cutting) button to discharge the cutting outside the blade The end of the tape.

6) When pressing the conversion button (M/A) No. (3) once more, No. (1) (manual) and No. (2) (automatic) All lights are on, in this state (semi-automatic mode), you can set the length of the cutting required by the user.

7) In order to set the required cutting length (adjusted per millimeter within 20 mm ~999 mm),The (5) (up) and (6) (down) buttons can be used.

8) After removing the delivered tape in the semi-automatic mode (Item No. 5), press the button No. (7) (Cutting), base on the set cutting length, re-send the tape, and enter the cutting standby state. Semi-automatic mode can be used Cut with weak adhesive force or non-adhesive tape.At this time, press the (7) (cutting) button again to send the cutting glue according to the set length Yes.

9) In semi-automatic mode, when pressing (3) button, (1) light will be off, (2) light will be on,Convert to automatic mode. When the automatic mode is implemented, the sensor senses the cutting situation of the tape as set Send out the length of the cut tape.
