Parameters:

1.The power supply
Input power: AC100V - 240 - v (50/60 hz)
The output power: DC15V 1A
2. The dimension (mm) : 123(W) x 181 (D) x 145 (H)
3. Line protection: overload stall or reverse, to protect the motor and the circuit board
4. The weight (Kg) : about 3Kgs
5. Screw capacity: 80CC

Greatest advantage:

1. Rotary mode feeding screw;
2. Support any material of the screw;
3. Cooperated with automation manipulator to pick up screw

Features:

1.All the round head screw,washer screw and thin head screws can be picked up

2.No vibration at the screw outlet, screw pick up stable and fast

3.The screw feeding by using rotaring mode instead of traditional straight line feeding, shortened the homeback time, increase the speed of screw supply

4.During feeding screw, if have any block, the machine will automatically homeback ensure the accuracy of the pick up position
5. Provide an external signal lines, with the signal lines,automatic equipment can know if there is a screw at the pick up position

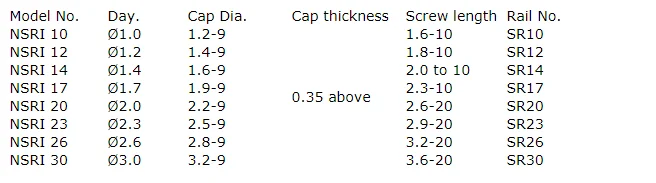

Specification

 More specification for your choice:
