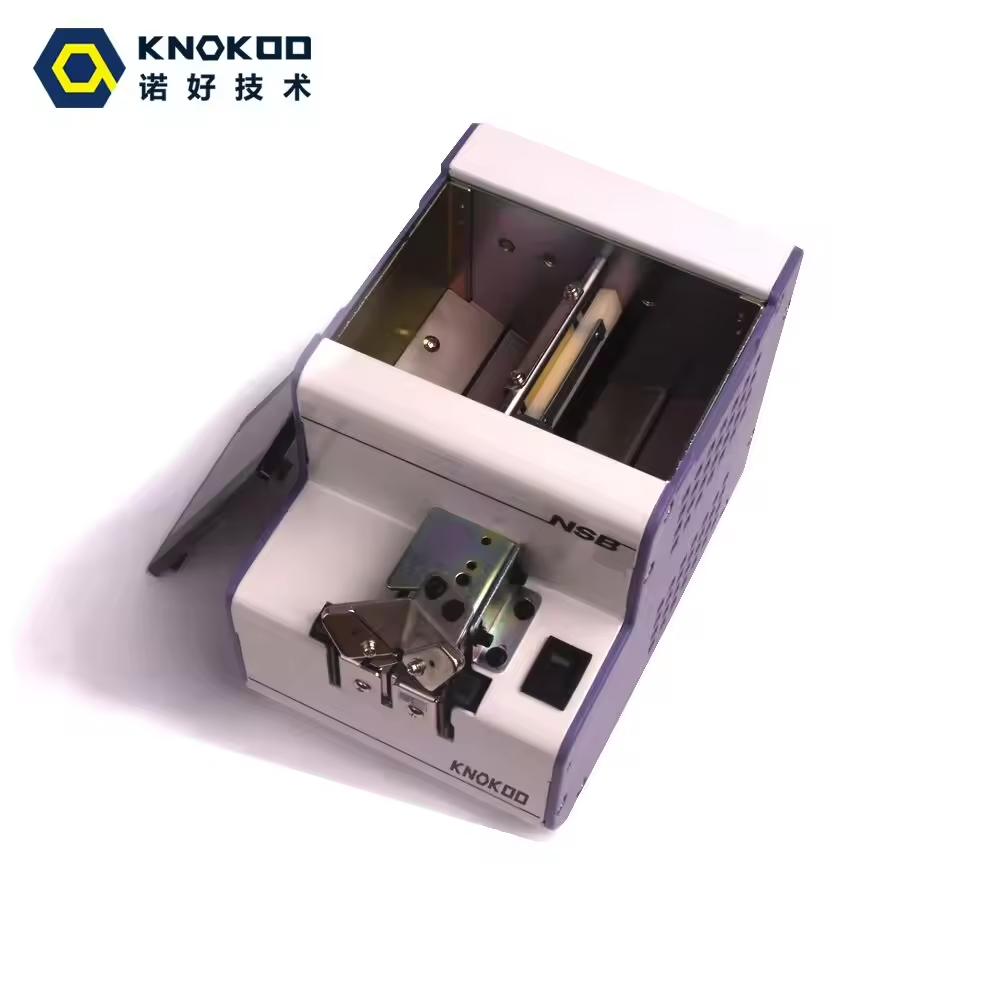

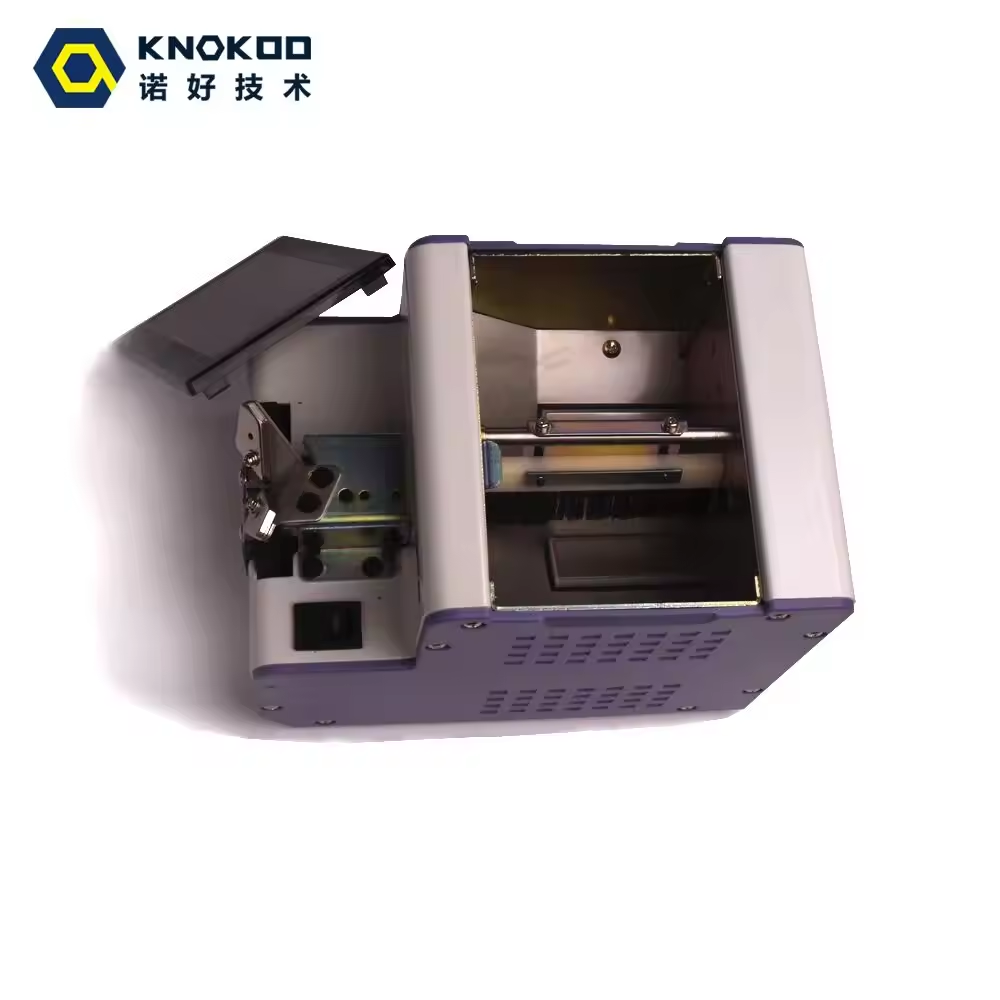

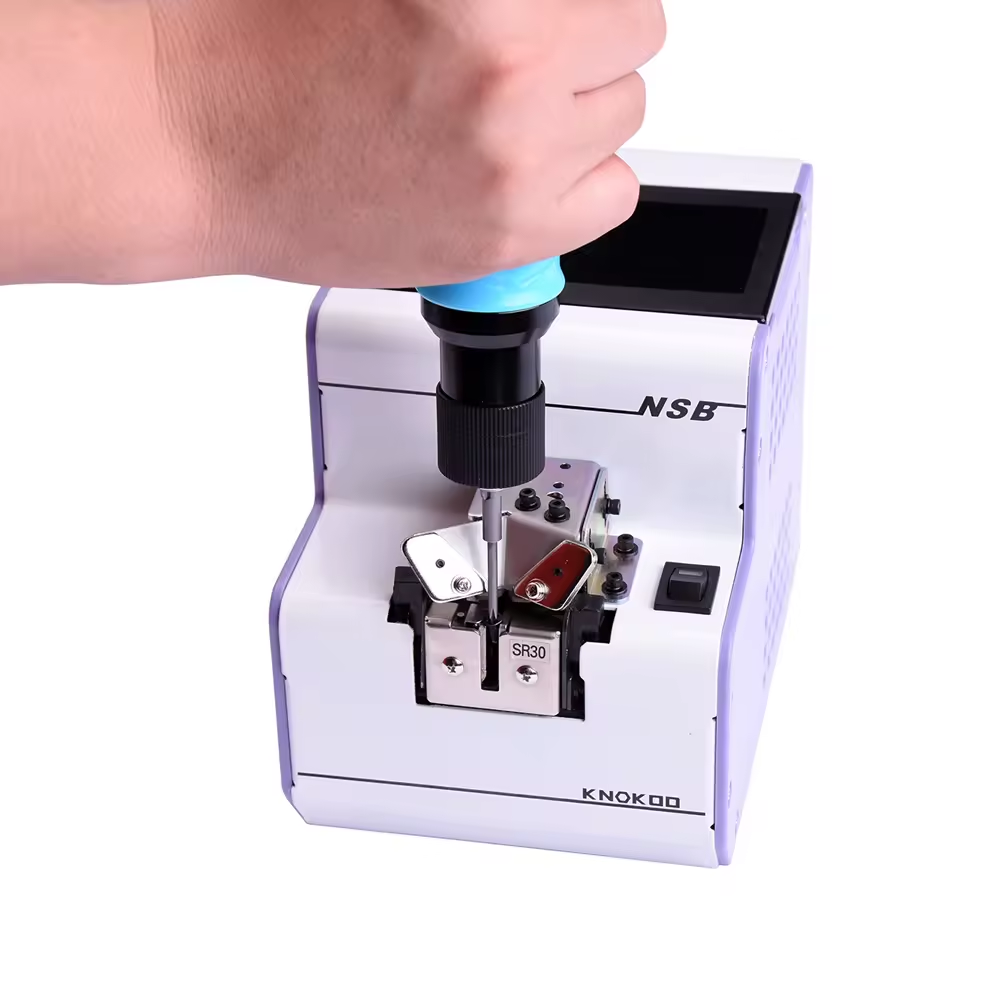

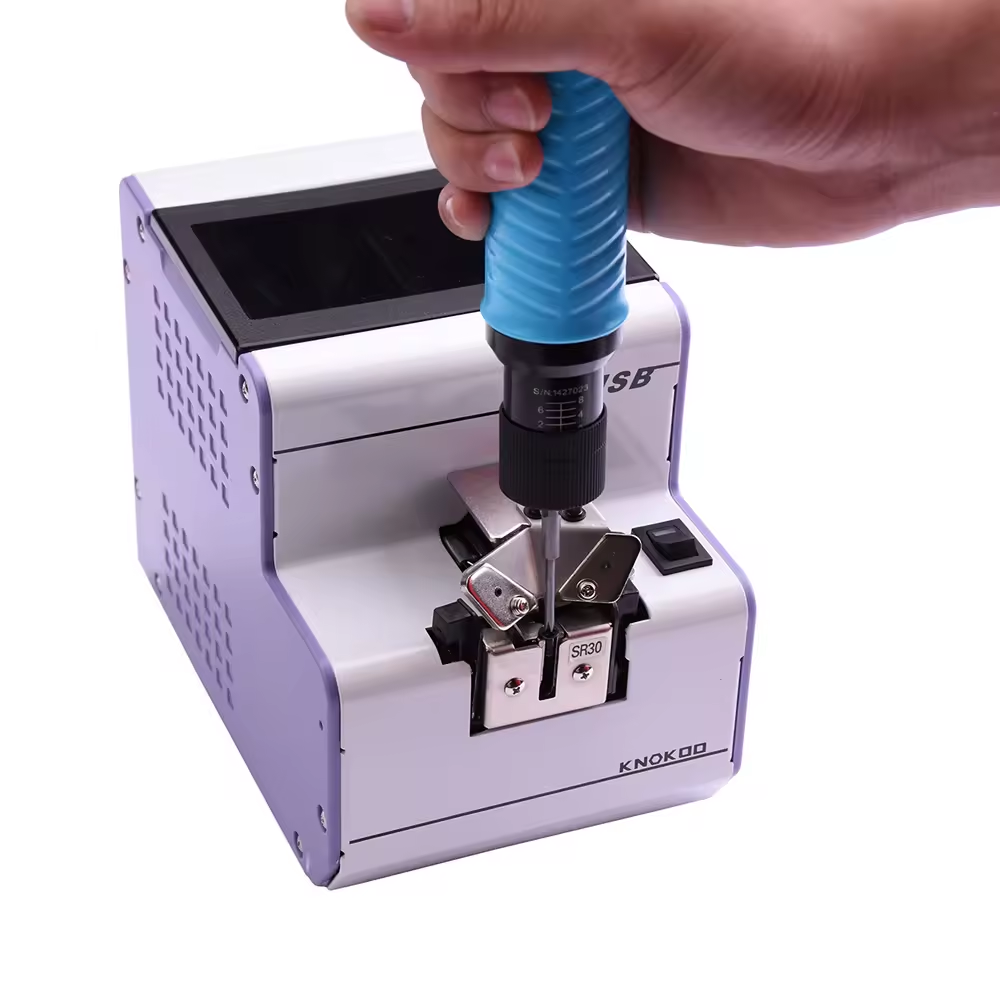

Automatic screw feeder with rail interchangeable-NSBSR3.0

Parameters:

• Model No.:KNOKOO SR3.0

• Brand:KNOKOO

• Applied screw: various types of screws including screw with washer (max. length=18mm)

• Applied screw: M3.0

• Feeding speed: 2pcs/sec input

• Product dimension:121(W)*155(D)*133(H)mm

• Voltage:110V-240V

• G.W 3.5kgs

Features:

• No need to change part, work 24 hours continuously

• No screw block phenomenon, quality reliable

• Special screw like 1:1 short screw or screw with washer can be applied with

• Rail change convenient, just need pull out the rail, freely fix another orbit rail, very easy

• No screw block phenomenon, the screw is rotated in the roller, the screw out of the rail will enter into another rotating circle

• Adjust the vibration to change the speed, the screw will not vibrate at the outlet, which will not effect the working efficiency

• Alarm function: feeding and vibrating is controlled separately, freely set the ideal delay time. It will alarm once abnormal phenomenon occurred

• Freely adjust the working speed,operation is so easy as other normal screw feeder.

Changeable rail options:

Accessories:

• Operation manual,

• internal hexagonal wrench,

• DC power supply(input: 100~220V,output:DC12V)
