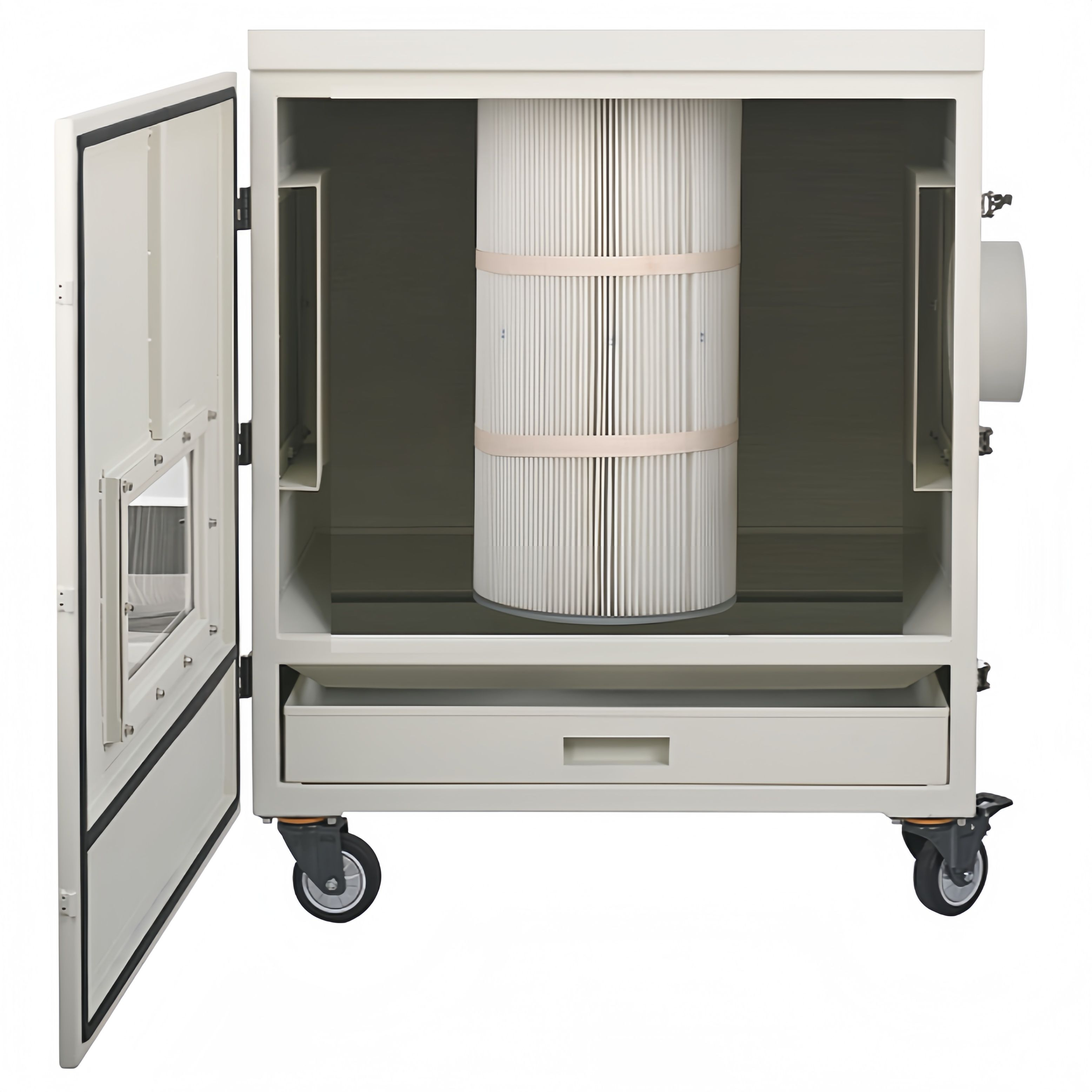

FES1100/FES1500 is a pulse -jet cleaning type industrial dust collector. It is generally used to capture and filter floating dynamic dust. It is widely used in metal cutting, welding, laser scribing processing, supporting lithium battery production lines, woodworking furniture processing dust control and powder operations.

Product Features

•Integrated body design, compactstructure, beautiful appearance and small footprint.
•The filter cartridge is foldable and suspended in design, with high filtration accuracy and larger filtration area.

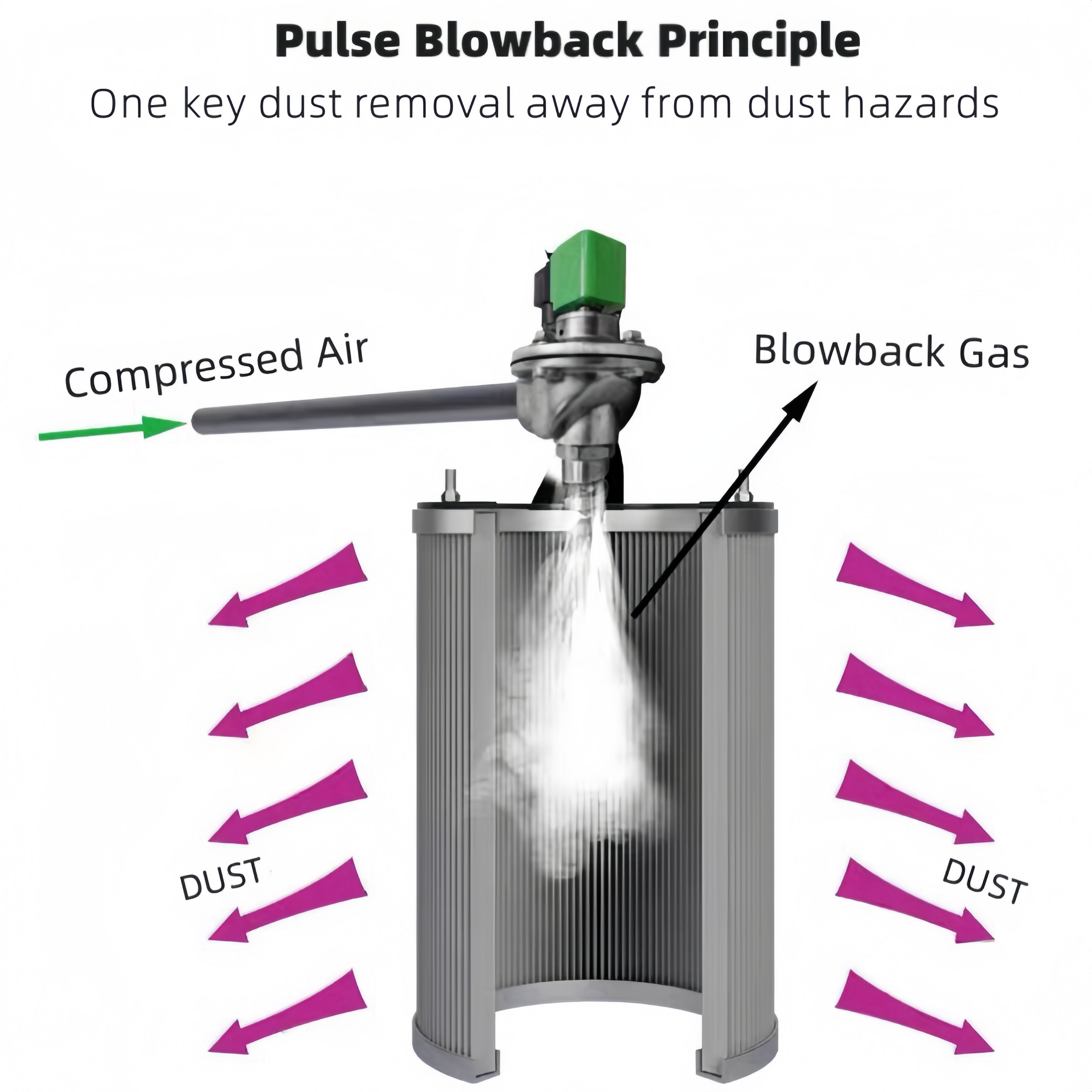

•Customized spiral nozzle, pneumatic pulse-jet cleaning,simple and efficient.
•The filter box is designed with a perspective window to facilitate checking the dust status at any time.
•Using Siemens motor, it hassufficient power,stable performance and smooth operation.
•Schneider electronically controlled main power switch, phase sequence protection, thermal overload protection, and independent control of the dust cleaning switch.
•Custom-made aluminum alloy turbocharger impeller, low noise operation, good dynamic balance and large negative pressure.

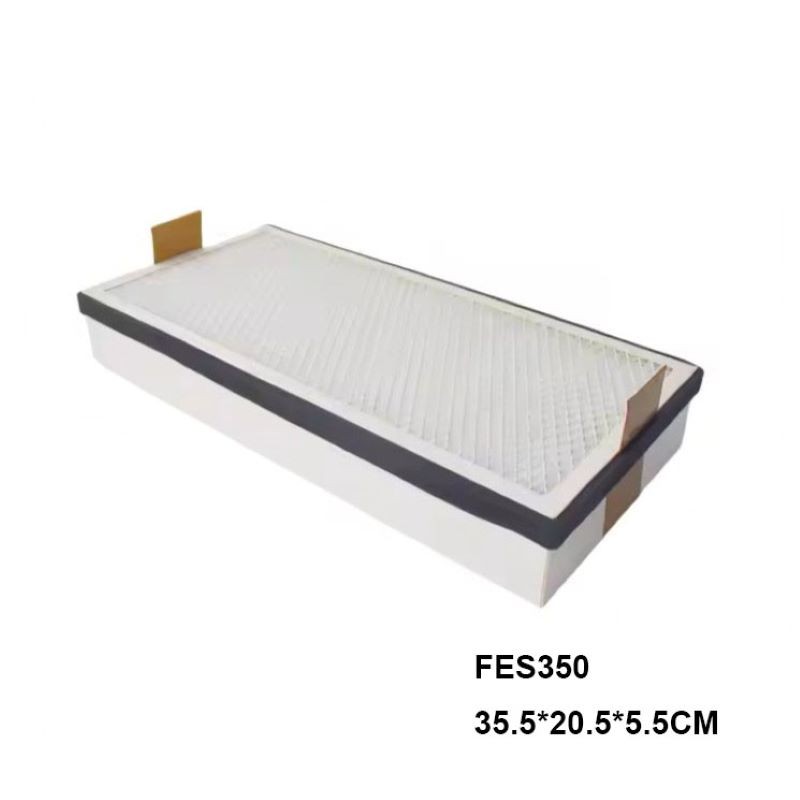

•The filter is made of imported polyester fiber PTFE coating material, with a filtration accuracy of 0.3μm.
•There are reserved air inlets on the left and right sides to facilitate the connection of machines according to the site.
•Equipped with a large-capacity dust collection box to facilitate the storage of dust collected during work.
•The bottom is equipped with a universal movable caster design for easy movement and adjustment.

Product Specification

Applications of FES1100 Industrial Dust Collection System:

1.Metalworking and Welding

Captures welding fumes, grinding dust, and metal shavings during processes like cutting, polishing, and brazing.

2.Woodworking

Removes sawdust, wood chips, and fine particles from sawing, sanding, and shaping activities.

3.Chemical and Pharmaceutical Industry

Essential for controlling powder and chemical dust during manufacturing, mixing, and packaging.

4.Construction and Renovation

Handles dust generated from masonry work, concrete grinding, and demolition activities.

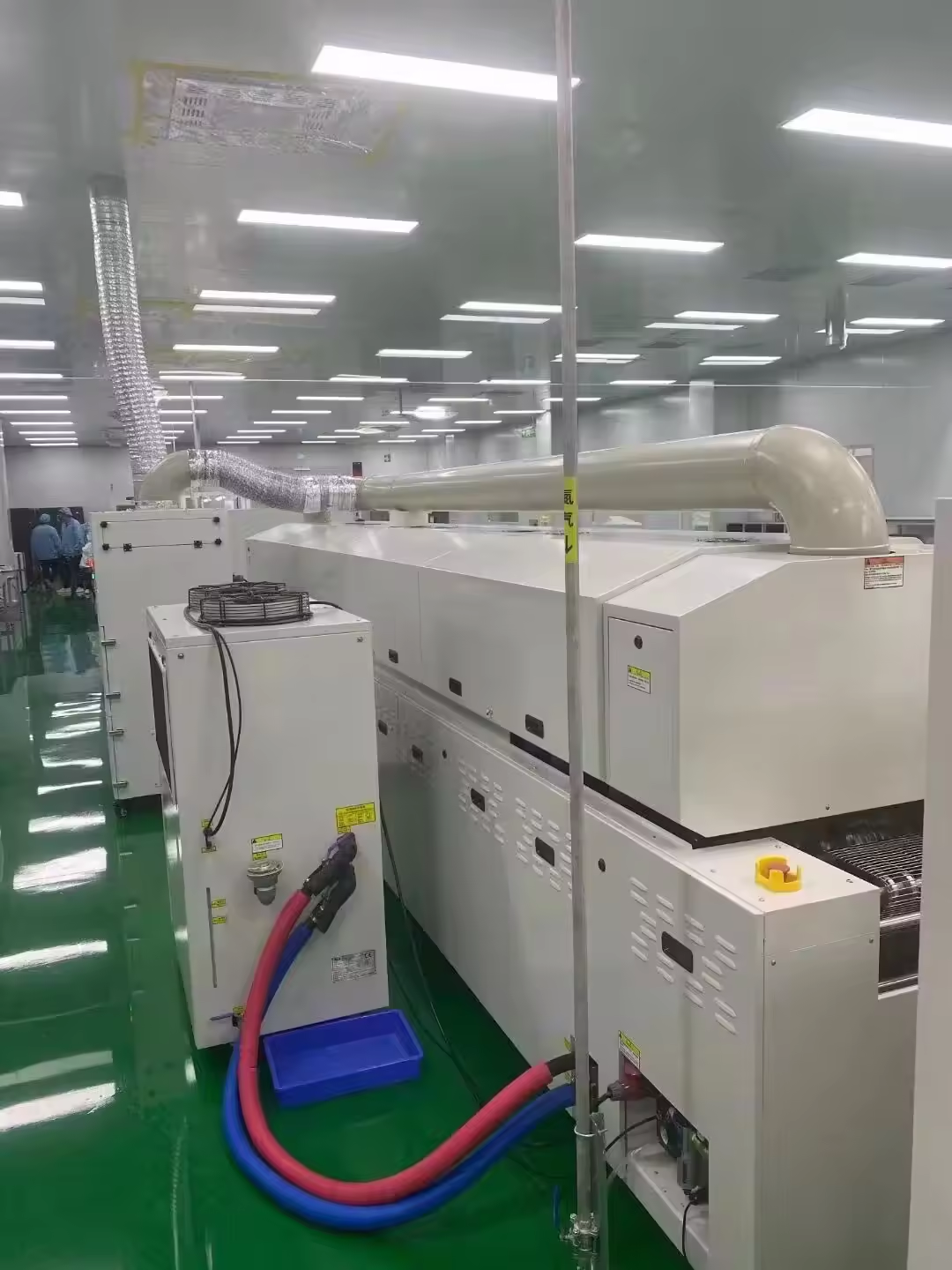

5.Electronics Manufacturing

Filters particulates from soldering, PCB manufacturing, and laser engraving processes.

6.Automotive and Aerospace

Ideal for sanding, painting, and assembly operations requiring precise dust control.

7.Food Processing

Collects airborne particles like flour, sugar, and spice dust, maintaining hygiene standards.

8.Laboratory and Cleanroom Applications

Provides contamination-free environments by removing particulates and airborne impurities.

Application Scenarios:

Centralized Dust Collection: Perfect for large-scale operations requiring dust collection from multiple workstations.

Localized Control: Suitable for individual workspaces with high dust or fume generation.

Portable Usage: Easy to relocate for on-demand dust collection in specific areas.

The FES1100 Industrial Dust Collection System combines power, efficiency, and versatility, making it a top choice for industries looking to maintain clean, safe,

and compliant work environments.
